Technical data
The specifications behind MegaWAVE.

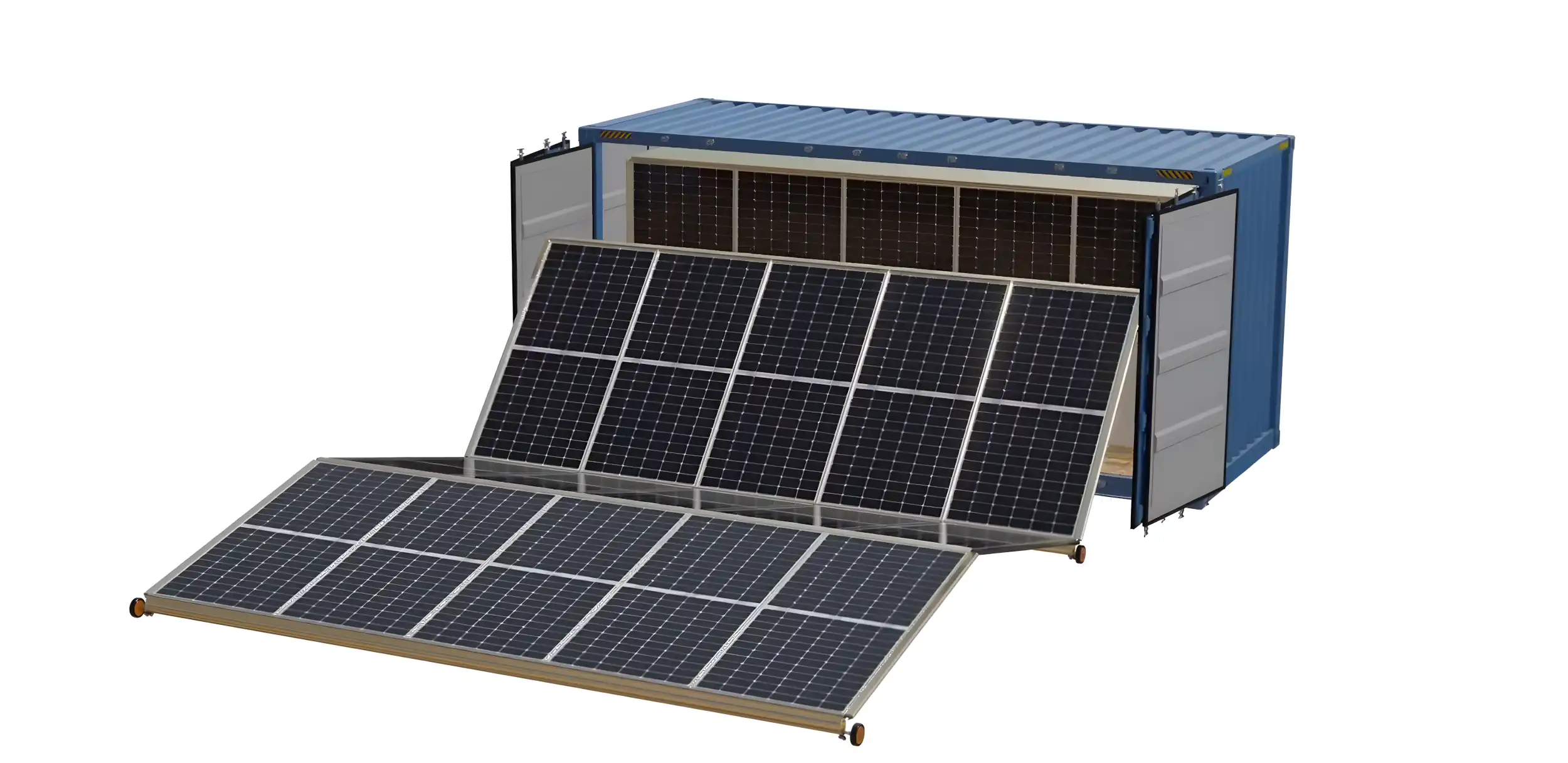

MegaWAVE is the 50 kW SOLAR WAVES appliance: factory-assembled, pre-wired, and designed for repeatable utility-scale deployment across multiple site types. The core specifications below describe the appliance, transport format, deployment logic, support systems, and operating features behind scalable SOLAR WAVES rollouts.
01 · Core specs
One repeatable unit, clearly specified.
50 kW
per MegaWAVE
1000V DC
system voltage
21.5%
module efficiency
Approx. 2,500 kg
appliance weight
5.8 m × 2.4 m
transport dimensions
CAT 5 wind-rating
engineered to resist strong winds and cyclones; final rating subject to configuration and certification
02 · Transport
Built for transport. Prepared for deployment.
Designed for shipping
SOLAR WAVES is designed with standard shipping containers in mind
2 MegaWAVES
per standard 20-foot shipping container
Minutes to hours
mechanical deployment window, subject to site preparation and connection requirements
03 · Specifications
Architecture, deployment, and operation.
Appliance architecture
- Factory-assembled MegaWAVE appliance
- Integrated structure and power surface
- Pre-wired before delivery
- Designed for repeatable production
- Containerised transport format
Deployment logic
- Reduced field assembly
- Rapid site positioning
- Repeatable support interfaces
- Site-specific support systems
- Designed for multiple deployment environments
- Suitable for repeatable utility-scale rollout planning
Operation
- Self-Cleaning System
integrated cleaning to reduce manual washdown
- Watertight roof
weather protection and rainwater collection
- Battery-on-Board
optional integrated storage
- Low-maintenance design
simplified interfaces and service access
04 · Downloads
Brochures and technical references.
Download supporting material for technical review, project discussion, and early-stage investment assessment.
Next step
Talk to us about SOLAR WAVES.
Discuss site fit, pilot projects, deployment requirements, and support-system options with the SOLAR WAVES team.
